Corrosion is one of the main threats to steel water storage tanks. It can damage coatings, tank floors, joints, and other steel components. A cathodic protection inspection helps identify corrosion risks before serious damage develops. It also confirms whether the protection system is operating correctly.
Regular cathodic protection testing is especially important for steel water tanks. Protective coatings can deteriorate, while anodes and electrical components can lose effectiveness. A complete inspection may include visual checks, electrical testing, anode assessment, and coating evaluation. Impressed current systems also require rectifier and current monitoring.

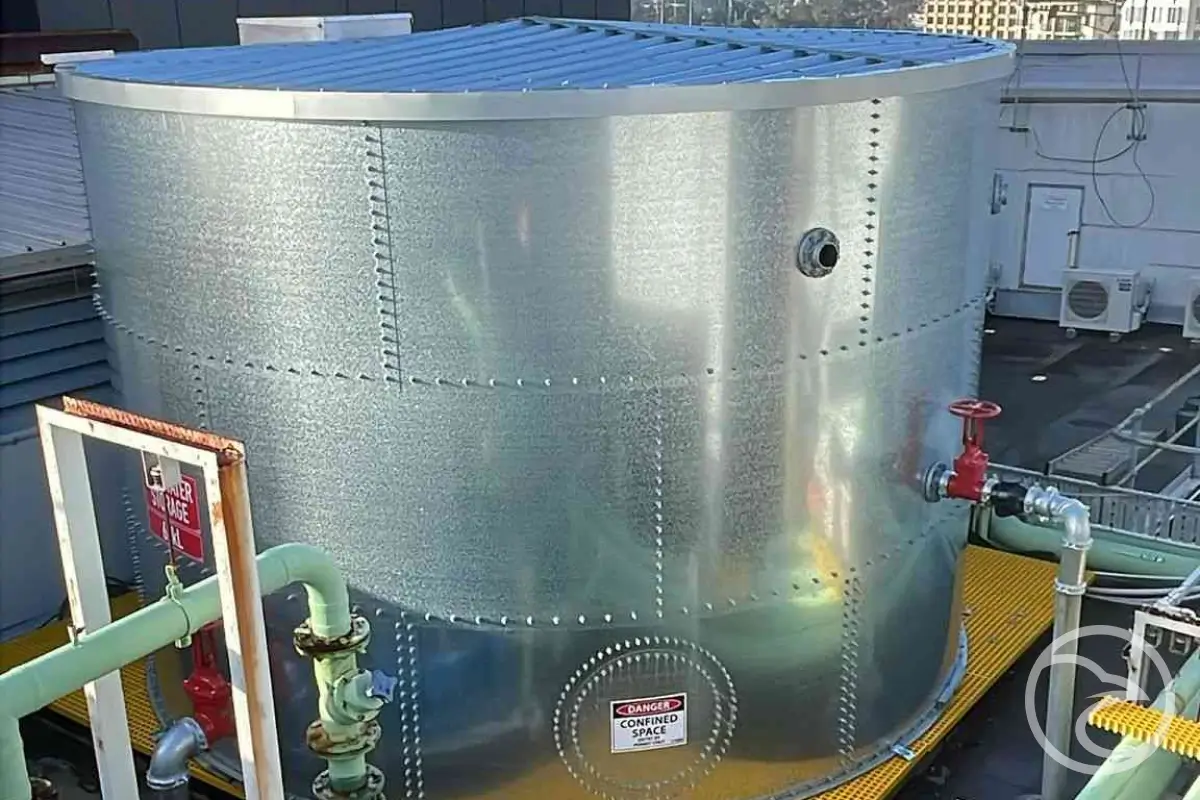

This guide explains how cathodic protection inspections work for water storage tanks. It also covers testing methods, maintenance, common problems, and inspection frequency.
What is Cathodic Protection?
Cathodic protection is a corrosion control method used to protect steel structures. Steel naturally corrodes when it interacts with water, oxygen, and other elements. Electrochemical reactions cause areas of the steel to lose electrons.
Over time, this process can create:
- surface corrosion;
- rust;
- pitting;
- coating deterioration;
- metal loss;
- leaks;
- structural damage.
A cathodic protection system changes this electrochemical process. It supplies electrons to the steel and makes the protected structure act as a cathode. This process significantly reduces the corrosion rate.
Cathodic protection is often used together with protective coatings. The coating provides the primary barrier against the environment.
Cathodic protection can protect exposed steel when small coating defects develop.

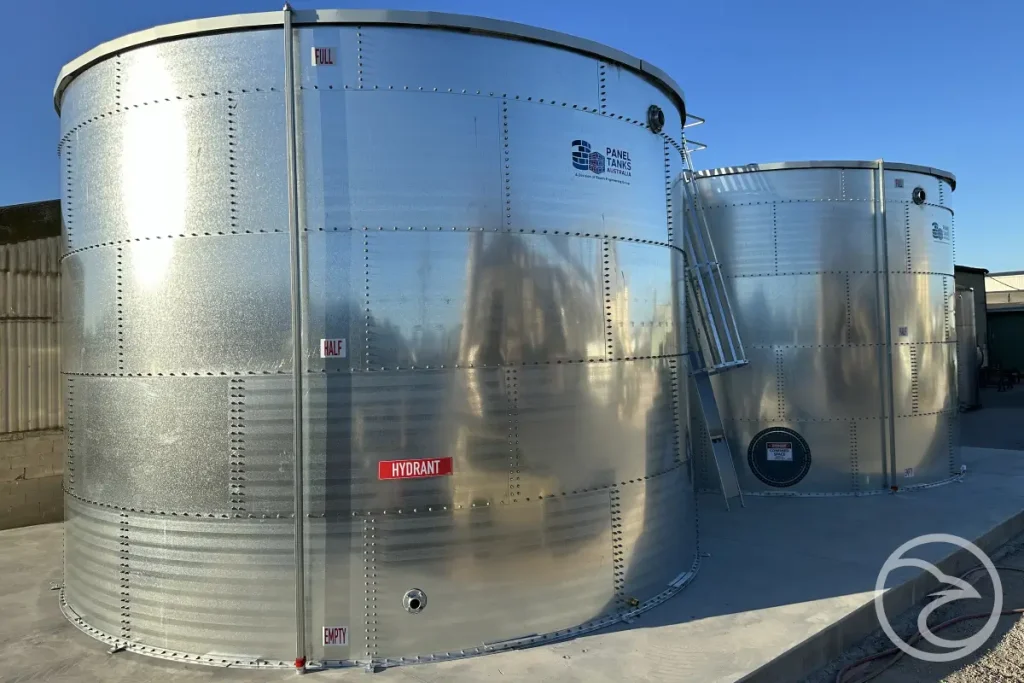

Why Water Storage Tanks Need Cathodic Protection
Steel water tanks can remain in service for decades. During that time, their internal and external surfaces face different corrosion risks. Water chemistry can affect internal steel surfaces. Moisture, soil conditions, and environmental exposure can affect external components.
Protective coatings reduce these risks but cannot provide permanent protection.
Coatings may deteriorate because of:
- ageing;
- abrasion;
- mechanical damage;
- poor adhesion;
- temperature changes;
- installation damage;
- long-term water exposure.
Small coating defects can expose the underlying steel. Cathodic protection provides an additional defence against corrosion in these vulnerable areas.
A properly maintained system can help extend tank service life and reduce major repair requirements.
What is a Cathodic Protection Inspection?
A cathodic protection inspection evaluates the condition and performance of a tank’s corrosion protection system. The inspection should determine whether the system continues to protect exposed steel. It can also identify components that require maintenance, adjustment, or replacement.
A typical inspection may evaluate:
- visible corrosion;
- coating condition;
- sacrificial anodes;
- electrical connections;
- cables;
- reference electrodes;
- rectifier performance;
- system voltage;
- current output;
- electrical continuity.
The exact procedure depends on the cathodic protection system and tank configuration. Environmental conditions and maintenance requirements can also affect the inspection process.
Why Cathodic Protection Testing is Important
A system can appear normal while providing inadequate corrosion protection. Visual inspection alone cannot confirm its electrical performance. This makes cathodic protection testing an important part of tank maintenance. Testing helps determine whether the steel receives adequate protection.
It can also reveal declining system performance before visible corrosion becomes severe.
Regular testing may help detect:
- insufficient protection;
- damaged electrical connections;
- depleted anodes;
- abnormal rectifier output;
- coating deterioration;
- electrical continuity problems;
- unexpected changes in system performance.
Early detection allows maintenance teams to investigate problems before extensive corrosion develops.
How to Inspect a Cathodic Protection System
A thorough tank cathodic protection inspection should follow a structured process. The exact procedure varies between systems. However, several inspection stages are common for steel water tanks.
1. Review Previous Inspection Records
Previous records provide an important baseline for the current inspection. Technicians can compare historical measurements with new readings. This comparison can reveal gradual changes in system performance.
Records may include:
- previous electrical readings;
- anode condition;
- coating repairs;
- rectifier settings;
- maintenance work;
- areas of previous corrosion.
Consistent documentation also makes long-term corrosion trends easier to identify.
2. Perform a Visual Tank Inspection
The next stage involves checking accessible components for visible problems. Inspectors should look for corrosion, coating defects, damaged cables, and loose connections.
Common warning signs include:
- visible rust;
- coating blistering;
- peeling coatings;
- damaged cables;
- loose connections;
- corrosion around joints;
- water leaks;
- damaged electrical equipment.
A visual tank corrosion inspection can identify areas that require further investigation. However, visual checks should not replace electrical testing.
3. Inspect Electrical Connections
Cathodic protection depends on reliable electrical connections. Loose, damaged, or corroded connections can reduce system performance.
Inspectors should examine accessible:
- cables;
- terminals;
- connectors;
- junction boxes;
- bonding connections;
- test stations.
Damaged components should be documented and assessed for repair.
4. Check Sacrificial Anodes
Sacrificial anodes gradually deteriorate while protecting the tank. This deterioration is expected. However, anodes must be replaced before they become ineffective.
An anode inspection may assess:
- remaining anode material;
- physical condition;
- consumption patterns;
- electrical connections;
- visible damage;
- expected remaining service life.
Unusually rapid consumption may indicate another system problem. Very little consumption can also require investigation.
5. Test the Cathodic Protection System
Electrical measurements help determine whether the system provides the intended protection. Testing often measures electrical potential between the protected structure and a suitable reference electrode.
These readings provide information about the electrochemical condition of the steel. Testing should use appropriate equipment and procedures for the installed system.
Results should also be compared with relevant project requirements and applicable standards.
How is Cathodic Protection Testing Performed?
The exact cathodic protection testing method depends on the tank and installed protection system. Testing generally begins with a review of the system configuration.
Technicians then identify suitable measurement locations and inspect the testing equipment. Electrical readings are collected at selected points.
These measurements can help determine whether protection remains consistent across the structure.
A typical testing process may include:
- reviewing previous readings;
- checking cables and connections;
- verifying testing equipment;
- positioning the reference electrode;
- measuring electrical potential;
- recording readings;
- comparing results with previous data;
- investigating unusual measurements.
Testing should be completed by trained personnel. Incorrect procedures can produce misleading readings and an inaccurate assessment.
Cathodic Protection Testing for Sacrificial Anode Systems
Sacrificial anode systems use a more reactive metal to protect steel. Common anode materials include magnesium, zinc, and aluminium. The anodes gradually corrode instead of the protected tank steel.
During inspection, technicians should assess both anode condition and system performance.
Important checks include:
- remaining anode material;
- anode consumption rate;
- cable condition;
- electrical connections;
- physical damage;
- electrical potential readings.
Anodes should not remain in service after their protective capacity becomes inadequate. Replacement can be planned during scheduled maintenance when deterioration is identified early.
Testing Impressed Current Cathodic Protection Systems
An impressed current cathodic protection system, or ICCP, uses an external electrical power source. A rectifier supplies controlled current through installed anodes. These systems are often suitable for larger steel storage tanks.
ICCP inspections may include additional electrical checks.
Technicians may review:
- rectifier operation;
- output voltage;
- current output;
- electrical continuity;
- cables and connections;
- reference electrodes;
- alarm systems;
- system settings.
Unexpected changes in voltage or current can indicate a system problem. For this reason, performance readings should be recorded and compared over time.
Cathodic Protection Inspection Checklist
A consistent checklist can make inspections easier to document and repeat. For a steel water storage tank, the checklist may include the following areas.
Visual Condition
Check for:
- visible corrosion;
- rust staining;
- leaks;
- damaged coatings;
- exposed steel;
- damaged tank components.
Electrical Components
Inspect:
- cables;
- connections;
- terminals;
- test points;
- junction boxes;
- bonding connections.
Cathodic Protection Performance
Review:
- electrical potential measurements;
- current readings;
- voltage readings;
- previous inspection results;
- unusual changes between inspections.
Anode Condition
Assess:
- remaining material;
- consumption rate;
- physical condition;
- electrical connection;
- expected replacement needs.
ICCP Equipment
Where applicable, check:
- rectifier condition;
- current output;
- operating voltage;
- alarms;
- electrical continuity.
Inspection findings should be recorded for future comparison.
Tank Floor Corrosion Inspection and Cathodic Protection
The floor is an important area during a tank corrosion inspection. Corrosion can develop where steel remains exposed to moisture or other corrosive conditions. Some deterioration may not be immediately visible during routine external inspections.
A tank floor corrosion inspection should therefore form part of the wider corrosion management strategy.
Inspectors may consider:
- coating condition;
- visible pitting;
- areas of previous corrosion;
- cathodic protection performance;
- changes in electrical readings;
- evidence of leakage;
- previous repair history.
Cathodic protection can help reduce corrosion where the system is properly designed and maintained. However, it should not replace appropriate physical tank inspections.
Inspecting Protective Coatings
Cathodic protection and protective coatings work together. A coating isolates most steel from the surrounding environment. Cathodic protection provides additional protection where exposed steel is present.
During an inspection, coating defects may include:
- scratches;
- blistering;
- peeling;
- cracking;
- abrasion;
- exposed steel;
- impact damage.
Damaged coatings can increase the demand placed on the cathodic protection system. Early coating repairs can therefore support better long-term corrosion control.
Professional tank inspections can help identify coating deterioration and other tank defects.
Signs a Cathodic Protection System is Not Working Properly
Cathodic protection problems are not always obvious. Some warning signs can indicate that further testing is required.
These may include:
- new corrosion on protected steel;
- corrosion around welds or joints;
- increasing coating deterioration;
- abnormal electrical readings;
- unexpected leaks;
- damaged electrical cables;
- loose connections;
- excessive anode consumption;
- unusual rectifier readings.
One warning sign does not always confirm system failure. However, unexpected changes should be investigated before corrosion becomes more extensive.
How Often Should Cathodic Protection be Inspected?
There is no single inspection interval for every water storage tank. Frequency depends on several factors.
These include:
- cathodic protection system type;
- tank design;
- operating environment;
- water chemistry;
- coating condition;
- system age;
- previous inspection results;
- applicable requirements.
Routine visual inspections may identify obvious physical problems. Electrical performance testing provides more detailed information about system operation.
Anode condition should also be assessed during appropriate scheduled inspections. ICCP systems may require more frequent monitoring because they rely on powered electrical equipment.
Inspection intervals should follow applicable requirements and recommendations for the specific system.
Cathodic Protection Maintenance
Inspection and testing should lead to appropriate maintenance when problems are identified. Ignoring small defects can reduce system effectiveness over time.
Common cathodic protection maintenance activities may include:
- replacing depleted sacrificial anodes;
- repairing damaged cables;
- restoring electrical connections;
- adjusting ICCP settings;
- repairing coating defects;
- replacing damaged electrical components;
- investigating abnormal readings;
- updating inspection records.
Maintenance should address the cause of the problem rather than only visible symptoms. For example, repeated anode problems may indicate wider system or environmental issues.
Common Cathodic Protection Inspection Mistakes
Several mistakes can reduce the effectiveness of a corrosion management programme.
Relying Only on Visual Inspection
Steel can experience electrochemical corrosion without obvious external signs. Electrical testing provides information that visual inspection cannot provide.
Ignoring Historical Test Results
A single reading provides limited context. Comparing results over time can reveal gradual changes in system performance.
Waiting Until Anodes are Fully Consumed
Sacrificial anodes need enough remaining material to provide effective protection. Their condition should be assessed before complete depletion occurs.
Ignoring Coating Damage
Cathodic protection does not make coating maintenance unnecessary. Both systems should work together.
Failing to Monitor ICCP Equipment
Impressed current systems depend on electrical equipment. Rectifiers, connections, current output, and other components require monitoring.
Benefits of Regular Cathodic Protection Inspection
Routine inspection supports a proactive approach to corrosion management.
The main benefits include:
- earlier detection of corrosion risks;
- improved system reliability;
- better maintenance planning;
- longer tank service life;
- fewer unexpected repairs;
- improved coating performance;
- reduced risk of serious steel deterioration.
Preventive maintenance is usually easier to plan than emergency structural repairs. Inspection records also help asset owners understand how tank condition changes over time.
Cathodic Protection as Part of Tank Corrosion Management
Cathodic protection should not operate as an isolated maintenance system. Effective corrosion management combines several protective measures.
These can include:
- protective coatings;
- cathodic protection;
- routine tank inspections;
- corrosion monitoring;
- coating repairs;
- anode replacement;
- electrical testing;
- planned maintenance.
The condition of one system can affect the performance of another. For example, extensive coating damage can increase demand on the cathodic protection system.
Regular inspections help identify these relationships before major deterioration occurs. If an inspection identifies extensive corrosion or coating failure, professional water tank refurbishment may be required to restore the tank.
When is a Professional Cathodic Protection Inspection Needed?
Professional assessment is useful when system performance becomes uncertain. It may also be required when significant tank deterioration is discovered.
Consider a detailed inspection when:
- corrosion appears unexpectedly;
- electrical readings change significantly;
- anodes deteriorate unusually quickly;
- coating damage becomes extensive;
- an ICCP system produces abnormal readings;
- tank repairs are being planned;
- previous inspection records show declining performance.
Qualified personnel can evaluate the condition of both the tank and its corrosion protection system. They can also identify areas requiring further testing or maintenance.
Conclusion
Cathodic protection is an important corrosion control method for steel water storage tanks. However, installing a system is only the first step. Regular cathodic protection inspection and testing confirms whether the system continues to protect the steel.
Inspections should evaluate visible corrosion, coatings, anodes, electrical connections, and overall system performance. ICCP systems also require monitoring of rectifiers, voltage, current, and related electrical components. A planned inspection programme can identify problems before they develop into serious corrosion damage.
Combined with coatings and regular tank maintenance, cathodic protection can help extend the service life of steel tanks. For water storage tank owners, early detection remains one of the most effective ways to control corrosion and repair costs.
