Pit liners play a vital role in protecting soil, groundwater and surrounding structures from contamination. Although they are often hidden from sight, these engineered membranes prevent leakage, chemical seepage and long-term environmental damage in industrial, commercial and agricultural sites. Understanding pit liner production helps project managers, facility owners and engineers make informed decisions when selecting the right type of liner for their applications.
This article explains how pit liners are made, the materials used in production and why their structural and environmental performance is essential for safe operations.
What are Pit Liners?

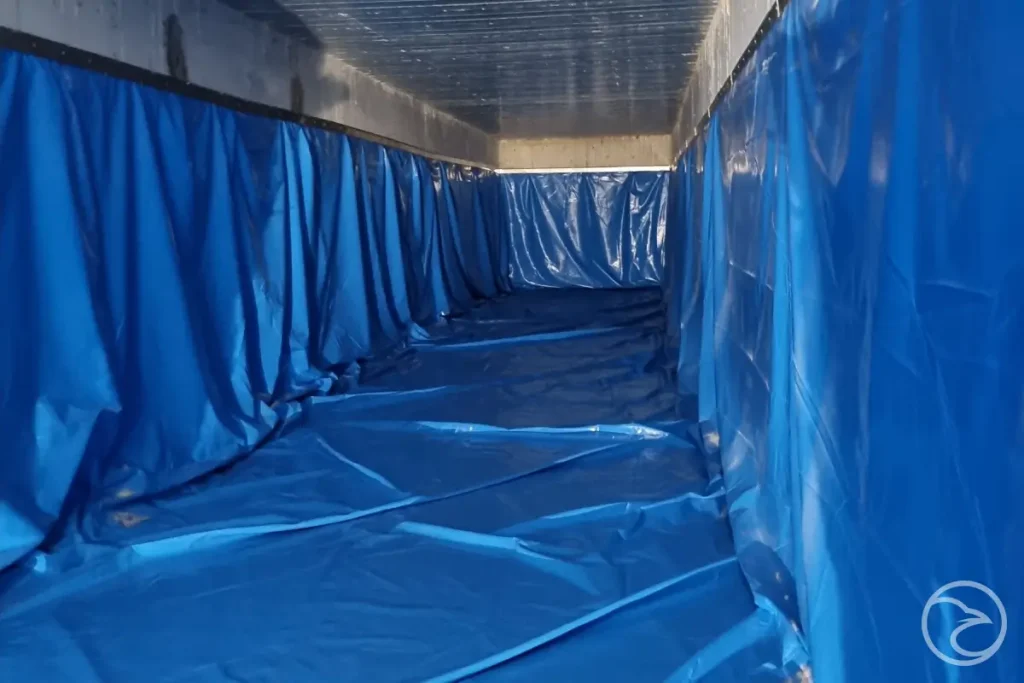

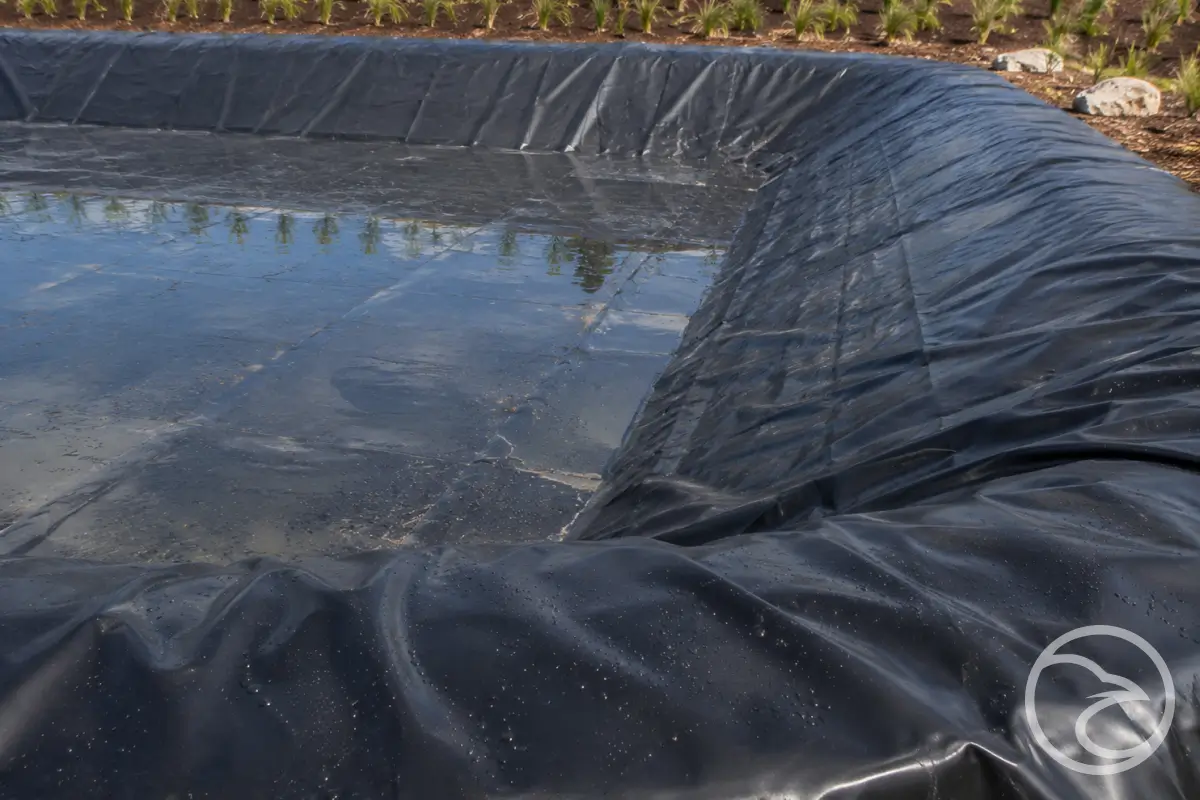

Pit liners are flexible or semi-rigid membranes installed in containment pits, sumps, and underground structures to create a protective barrier between stored liquids and the surrounding soil. They are commonly used in:
- wastewater pits
- industrial containment areas
- chemical storage pits
- stormwater systems

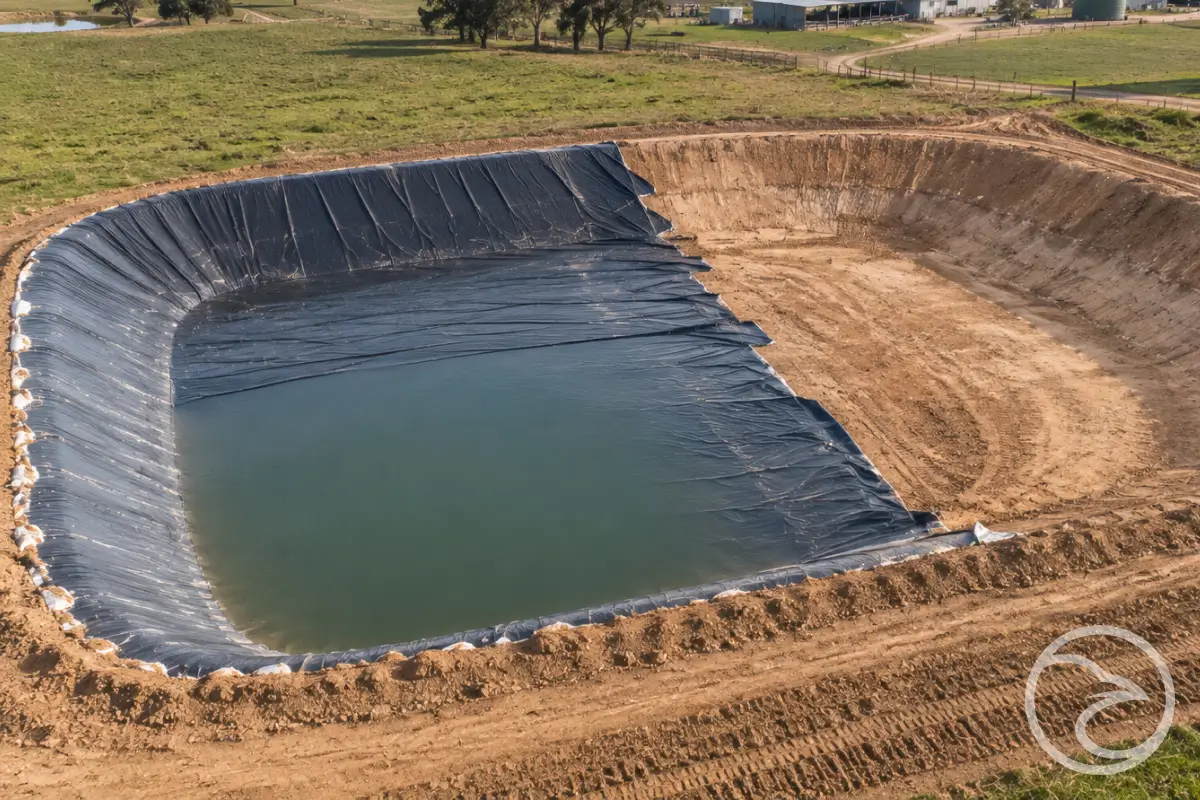

- agricultural and irrigation pits
- mining and processing facilities
The main purpose of a liner is to contain liquids safely and prevent environmental contamination. Without a proper lining system, pits are vulnerable to leaks that can lead to soil pollution, groundwater contamination and structural damage.
How Pit Liners are Produced
Production of pit liners is a multi-stage process designed to ensure durability, chemical resistance and long-term reliability. While the exact steps vary depending on the material, most liners undergo a similar sequence of manufacturing stages.
1. Material Selection
The production process begins with choosing a base polymer suitable for the application. The most commonly used materials include:
- HDPE (High-Density Polyethylene) – strong, rigid and highly resistant to chemicals
- LDPE (Low-Density Polyethylene) – more flexible, suitable for uneven surfaces
- PVC (Polyvinyl Chloride) – flexible and easy to handle
- EPDM rubber – extremely resistant to UV and temperature variations
Each material has benefits depending on site requirements, chemical exposure and temperature conditions.
2. Extrusion of Polymer Sheets
Once the material is selected, it is melted and extruded into thin sheets. This extrusion process ensures consistent thickness and density across the entire liner sheet, providing uniform performance.
Polymer pellets are fed into industrial extruders, heated to melting point and pressed through large flat dies to form smooth, continuous sheets. The sheets are then cooled and trimmed to precise dimensions.
3. Reinforcement and Layering
For applications requiring additional strength, pit liners may include reinforcement layers. These can be:
- woven scrim for tear resistance
- geotextile backing for structural stability
- laminated layers for puncture resistance
Layering strengthens the liner while keeping it flexible enough to fit irregular pit shapes.
4. Welding and Panel Fabrication
After the sheets are produced, they are welded together to create large, custom-sized panels. Two common methods are used:
- hot wedge welding
- hot air welding
These techniques fuse liner sheets into strong, leak-proof seams. The welded panels are then folded, rolled and prepared for transport to the installation site.
5. Quality Testing and Inspection
Before leaving the factory, the liner material undergoes a series of quality checks, including:
- tensile strength testing
- puncture resistance checks
- chemical compatibility validation
- seam integrity tests
- UV exposure resistance tests
These inspections ensure that every liner meets safety and performance standards before installation.
Purpose of Pit Liners in Modern Facilities
While the production process focuses on material strength and durability, the purpose of a pit liner is centered around safety, environmental protection and regulatory compliance.
1. Environmental Protection
Pit liners act as a secure barrier that stops liquids from migrating into soil and groundwater. This is especially important in facilities storing chemicals, contaminated water, wastewater or industrial by-products.
Without a liner, even minor cracks or seepage can escalate into environmental violations and costly remediation.
2. Structural Protection
Unprotected pits can deteriorate quickly when exposed to chemicals, moisture or repeated filling cycles. Liners shield the underlying concrete or soil structure, extending the lifespan of pits and reducing repair costs.
3. Regulatory Compliance
Many industries must comply with strict environmental regulations that require secondary containment systems. A properly designed pit liner helps facilities meet these requirements and avoid fines or operational shutdowns.
4. Versatility Across Applications
Because pit liners can be manufactured in many materials and thicknesses, they serve a wide range of uses:
- preventing leaks in wastewater systems
- lining chemical containment pits
- safeguarding agricultural water pits
- supporting stormwater management systems
- providing safe containment in industrial processing plants
Their adaptability makes them a reliable solution for diverse operational environments. For facilities planning new installations, our detailed containment liner installation services offer engineered solutions designed to meet strict site requirements.
Choosing the Right Liner Based on Production Standards
The best pit liner for a site depends on:
- chemical composition of stored liquids
- temperature exposure
- soil conditions
- required lifespan
- regulatory standards
Understanding pit liner production helps decision-makers choose materials that match the durability and performance needs of their operations.
Conclusion
Pit liner production involves careful material selection, reinforcement, welding and rigorous testing to ensure each liner delivers long-lasting environmental and structural protection. By choosing the right liner for the right application, facilities can prevent contamination, extend the life of containment pits and maintain regulatory compliance.
This knowledge gives site managers and engineers a better understanding of how high-quality pit liners contribute to safe, efficient and environmentally responsible operations.
